Date and time Settings

How to set Date & Time in the C7X ?

To set the date and time in the C7X display, follow next steps:

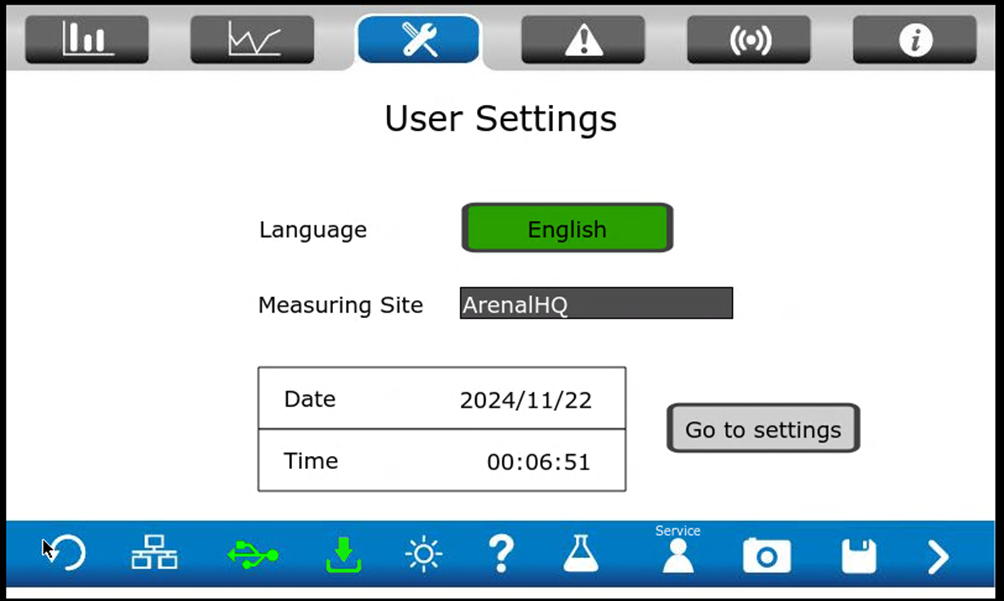

The date and time can be seen on the Configuration Menu / User Settings

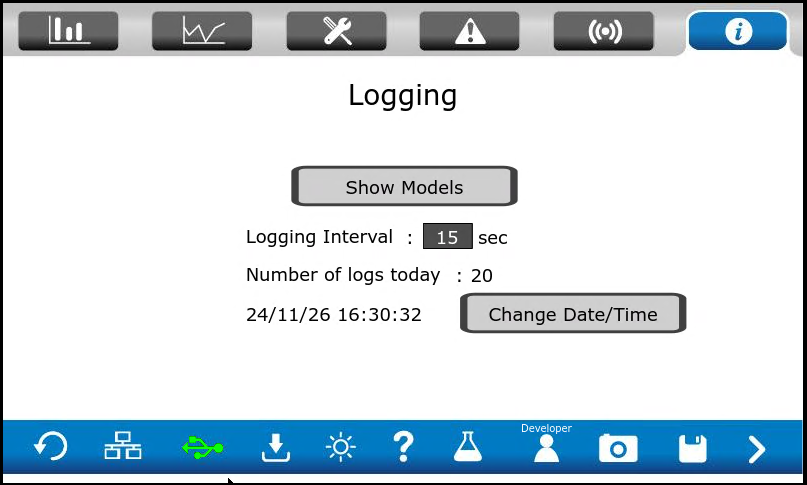

...and on the data logging page (picture was taken on an other date and time).

The logger will use this date and time to store the measured and calculated values. It is not convenient to match a wrong date&time in a database with samples from the client. So, change the date&time according to the local settings.
From April 2024, you will be able to do this from the front-end, so from the pages above. But the firmware up to 4.1.0 does not allow this yet.
It needs to be changed from the back end, so from the Cimon menu. Log in with the Service account.

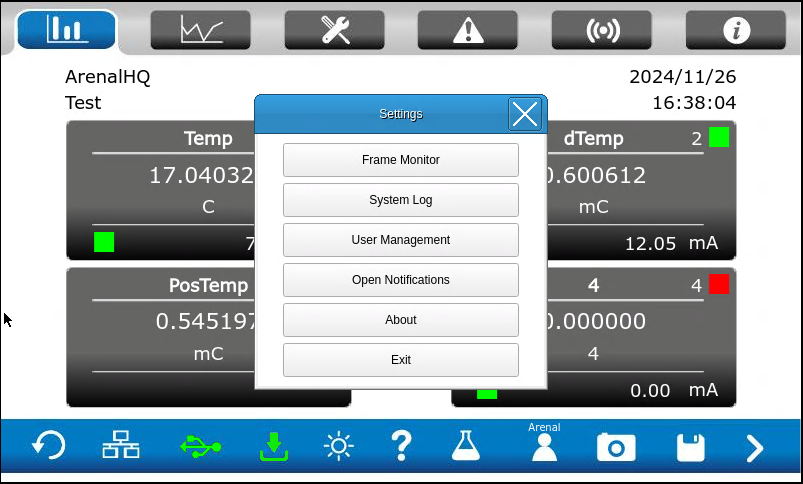

In any screen, press the Ethernet icon on the bottom bar (2nd from left).
The following menu appears:

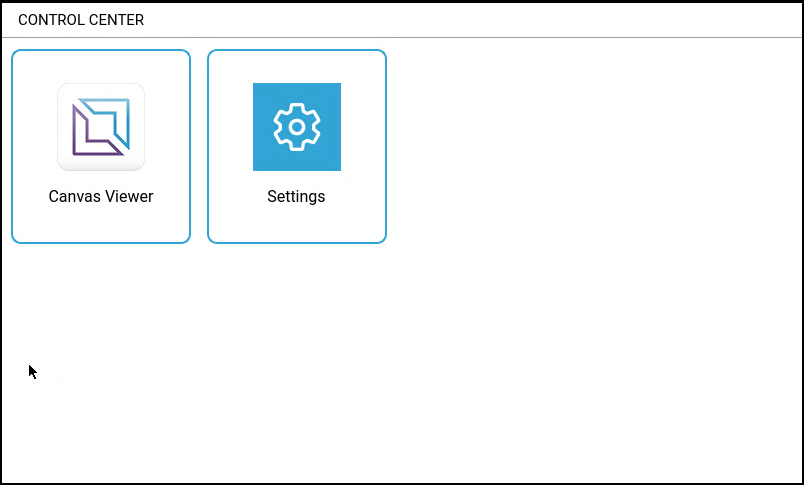

Press Exit.

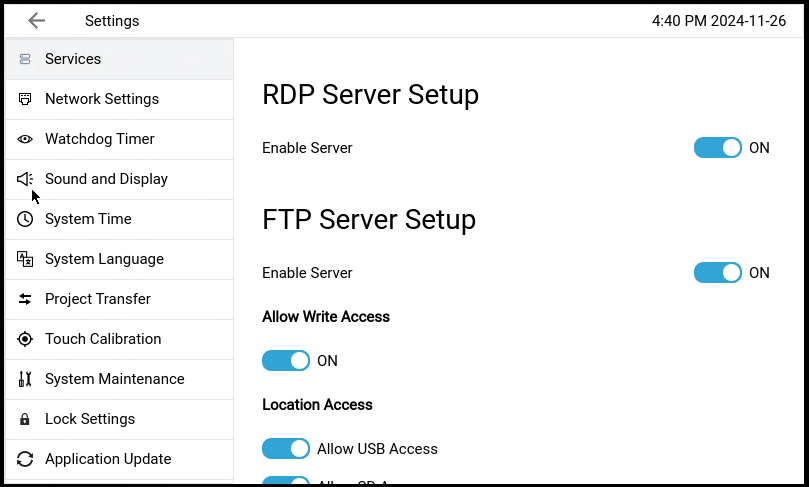

Press Settings

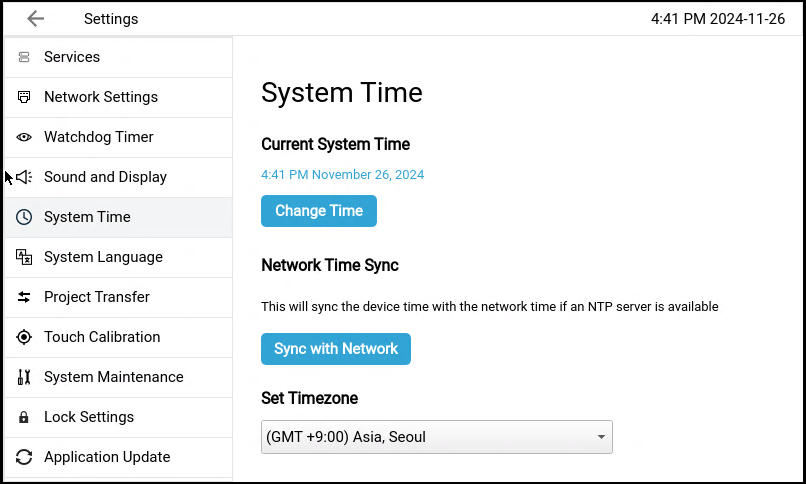

On the left bar, press System Time.

Set the correct date and time. Go back with the arrow on the top left.
Then press Canvas Viewer.
